Configure X-Lite to Work with Localphone

  1. Device Guides
  2. X-Lite

X-Lite is a free SIP-based softphone that lets you make and receive calls on your PC or Mac. This guide describes how to configure your X-Lite installation to work with your Localphone account.

This guide has been tested with X-Lite version 3.0 for the Mac, but the following steps will be compatible with other versions and platforms.

  1. Add a New SIP Account

    Select “SIP Account Settings…” from the main menu and click the “Add…” button to configure your Localphone account.

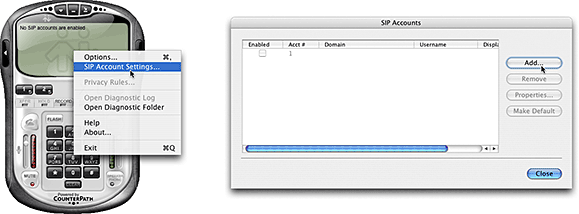

    Add a new SIP account

  2. Enter Your Localphone Account Details

    Configure your new account as follows, leaving any other fields blank or as their default values:

    Display Name Localphone
    User name [DID]
    Password [SIP Password]
    Authorization user name [SIP ID]
    Domain localphone.com
    Proxy proxy.localphone.com
    Enter your Localphone account details

  3. Test Your Configuration

    Press OK and close the SIP Accounts window. The main X-Lite window should read “Discovering network…”, and then after a short pause “Ready” with your username.

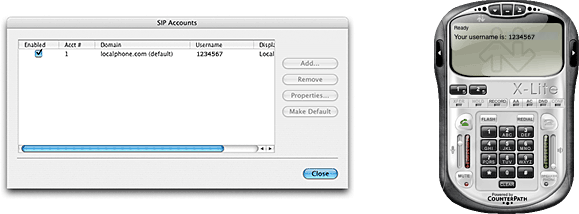

    X-Lite should now register

Following the steps above, you should now be able to connect to Localphone and make and receive calls. For further information about configuring X-Lite, or for help with troubleshooting, please see:

This guide is provided for assistance. If you discover any errors in this page, please send us your comments and we will update the guide as soon as possible.
